Ford Model T Specifications |
|
|
Item |
Description |
|
Years of Manufacture |
October 1, 1908 to May 26, 1927 |
|
Total Units Manufactured |
15,458,781 |
|
Serial Number Location |
If the chassis is marked the
serial number is on the right frame near the firewall, or under the
right floor board, matching the original engine number. |
|
Price |
$850, later $350 with new
manufacture innovations |
|
Average Weight |
1200 -1500 pounds |
|
Wheelbase and Track |
100 inch x 56 inch |
|
Length and Width |
134 inch x 66 inch |
|
Engine |
4 cylinder, 4
stroke, internal combustion gasoline
engine, cast-en-bloc, 3 crank main bearings, "L" head with 2 side
valves per cylinder, splash lubricated, water cooled |
|
Engine Displacement |
177 cubic inches - 2.9 litre
(2900cc) |
|
Engine Horsepower |
20-22 BHP @ 1600 Maximum RPM |
|
Engine Torque |
83 Ft-Lbs @ 900 RPM |
|
Cylinder Bore and Stroke |
3.75 x 4.00 inches |
|
Compression Ratio |
4.5 to 1, Cylinder Pressure 50-70 psi |
|
Bolt Torques – ft/lbs |
5/16 – 15, 3/8 – 30, 7/16 – 45, 1/2 - 75 |
|
Intake Valve Gap |
.010"-.012" (adjustable tappets, stock cam) |
|
Exhaust Valve Gap |
.012"-015" (adjustable tappets, stock cam)) |
|
Engine Oil Capacity |
4 quarts, All Synthetic 10/30W recommended |
|
Cooling System Capacity |
14 quarts water or antifreeze 50/50 solution |
|
Ignition System |
Commutated 4 coil vibrating reed system.
Electricity from 6 Volt battery or flywheel mounted magneto
delivering from 4 to nearly 30 VAC |
|
Firing Order |
1-2-4-3 |
|
Coil Amps |
1.2 - 1.4 A |
|
Coil Point Gap |
.029" - .031" |
|
Spark Plug Types |
Champion X, Champion 25, Motorcraft F-11 |
|
Spark Plug Gap |
.031" - .035" |
|
Magneto Clearance |
.025" – .030" between magnet keeper faces and coil ring pole bosses |
|
Fuel Capacity |
10 Gallons - Range approx 200 mile. |
|
Fuel Consumption |
Approx. 20-25 MPG @ 35 MPH |
|
Drive Type |
Planetary transmission, 2 forward speeds, 1
reverse, rear wheel drive via torque tube driveline and bevel cut gear
closed differential, final drive ratio 3.64/1 |
|
Differential Capacity |
2 pints 90W – 120W |
|
Wheels and Tires |
Wood spoke demountable clincher rim "Artillery" wheels, tires balloon type 30x3" front, 30x3 ? rear |
|
Inflation Pressure |
55 psi
(Clincher type), 35psi (Split rims & balloon tyres) |
|
Front Axle Alignment |
Camber 3 ?", Caster 5 ??, Toe-in 1/8"-1/4" |
|
Top Speed |
Approx. 45 MPH, normal cruise 35 - 40 MPH |
|
Engine RPM@Speed |
1400@35 MPH, 1600@40 MPH, 1800@45 MPH |

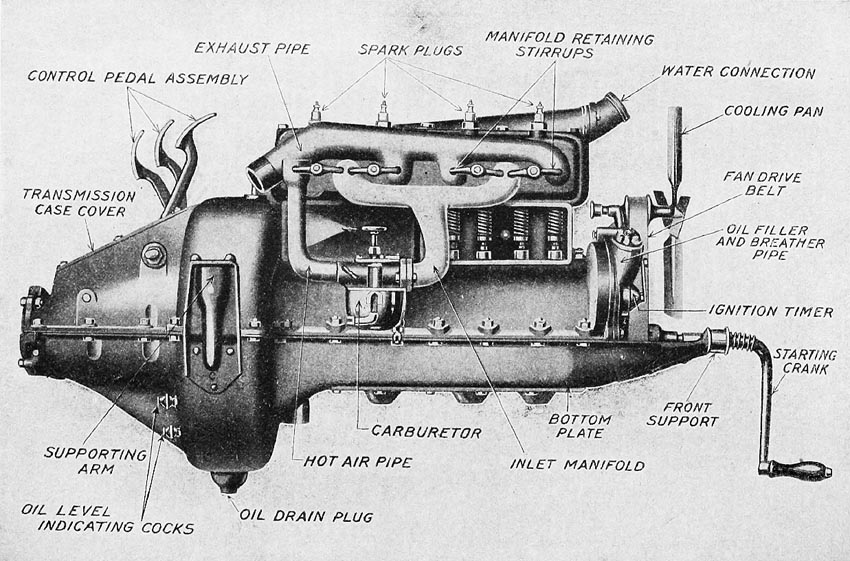

The
Model T Engine
Coil Boxes

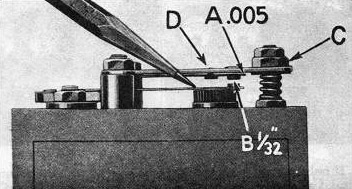

The
upper contact cushion spring should have approximately .005
clearance at A to the upper bridge D. This clearance should
extend the full length of the cushion spring. Push the vibrator
spring down to core and adjust nut C until the upper point just
makes contact with a .029-.031 feeler gage. Lock C position with
upper nut. Adjust tension on the vibrator spring by lightly
tapping the back of the vibrator spring bridge (or by prying it
up) until the coil draws 1.3 amperes at 6 volts input. When all
4 coils are properly adjusted, they should all have a uniform
pitch like the sound of an angry bee, about 275 cps. |
|
|
|
