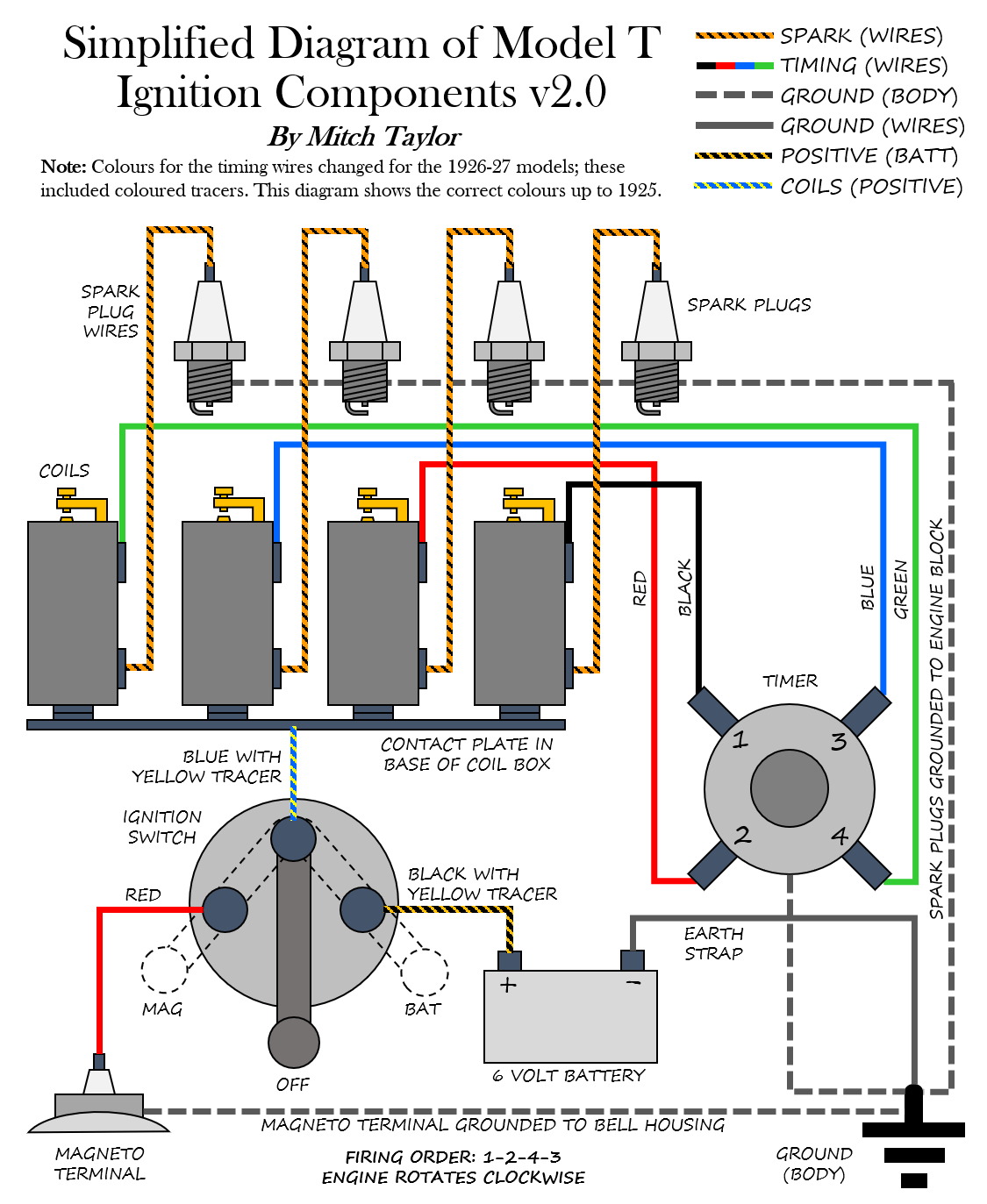

So I thought I would modernize the ignition circuit diagram for the Model T, with this colour coded, computer generated version. Feel free to download and print for your own reference. It also includes full colour coding for each of the wires...

Download Free printable PDF here (75KB)
